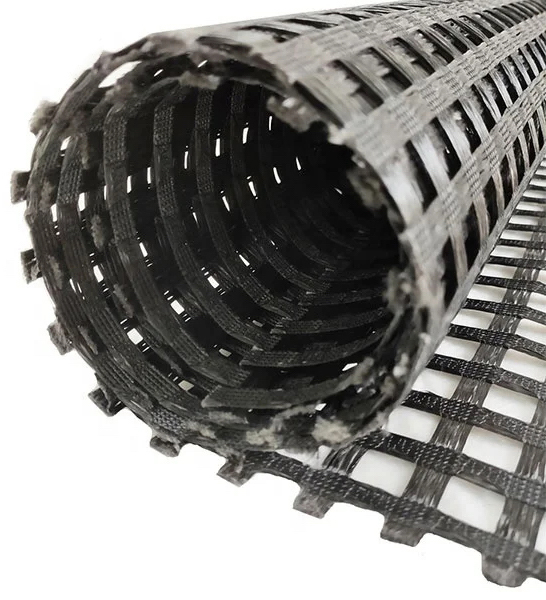

Polyester Geogrid

Polyester Geogrid is manufactured from high-strength polyester industrial yarns, formed into a warp-knitted structure, and coated with PVC. It is applied to reinforce soft soil foundations and subgrades,thereby improving project quality and reducing construction costs. This product is primarily used for stabilizing soft ground in railway and road construction projects.

  • Materials:Polyester

  • Grid size:12.7x12.7 25.4x25.4 50.8x50.8 76.2x76.2

  • Color:black

  • Roll Width:1-6m

Polyester Geogrid is manufactured from high-strength polyester industrial yarns, formed into a warp-knitted structure, and coated with PVC. It exhibits high tensile strength, low elongation, excellent tear resistance, and strong interlocking with gravel and bonding with soil.

This product is applied to reinforce soft soil foundations and subgrades , thereby improving project quality and reducing construction costs.

It is primarily used for stabilizing soft ground in railway and road construction projects.

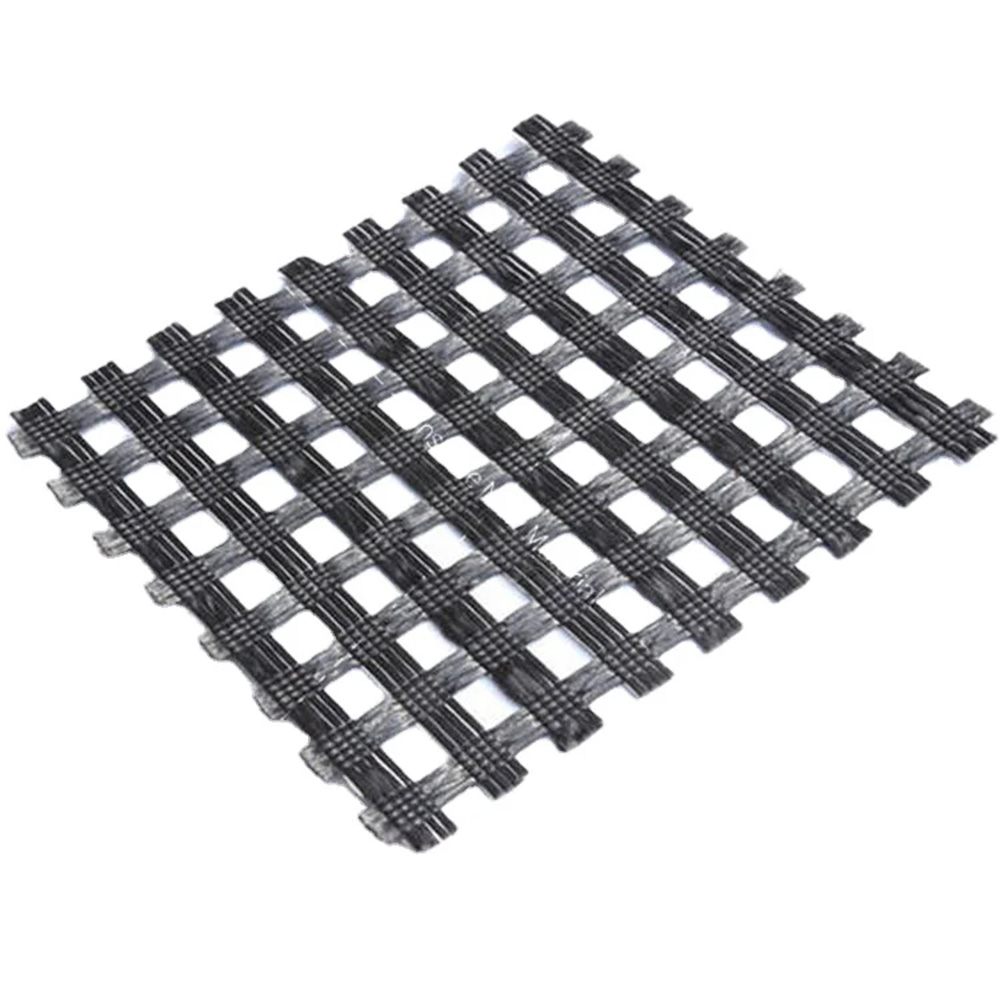

1.jpgphotobank (4).jpg

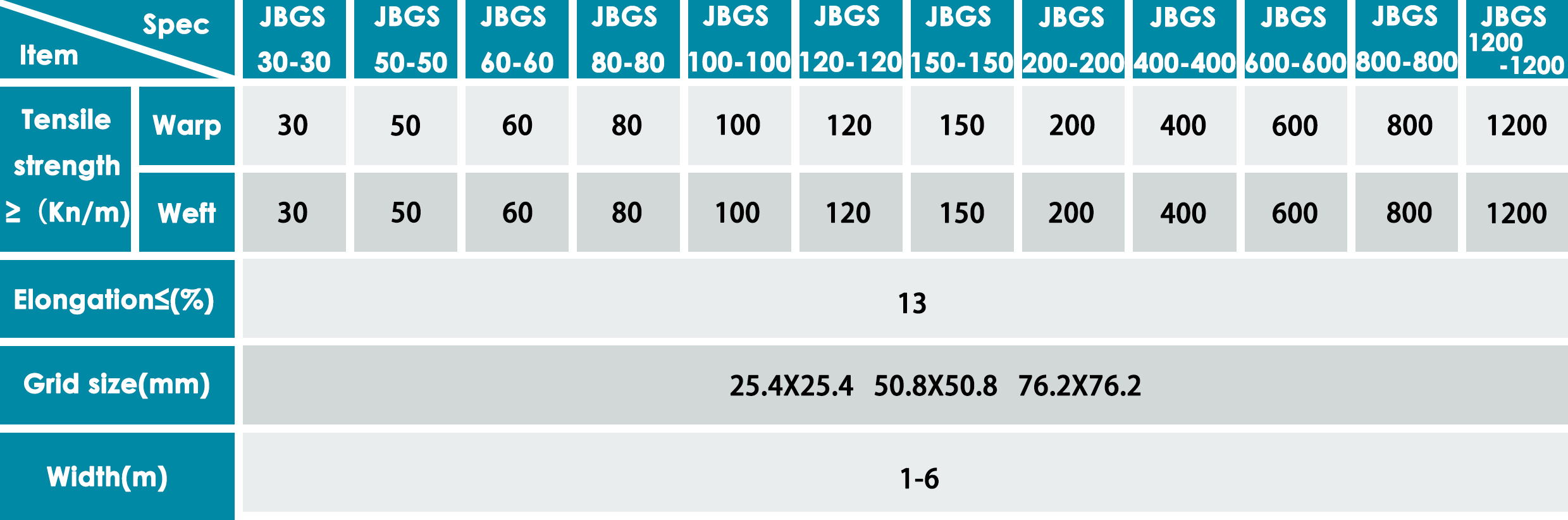

Polyester Geogrid Product Properties





photobank (1).jpg




GeoGro Geocell for Railway embankment

GeoGro Railway embankment

Placing the geocell at the bottom of the track bed (top of the foundation bed) can improve the bearing characteristics of the roadbed, so that the stress of the load transferred to the soil under the cell is reduced, so the deformation of the soil is also reduced.

Geogro

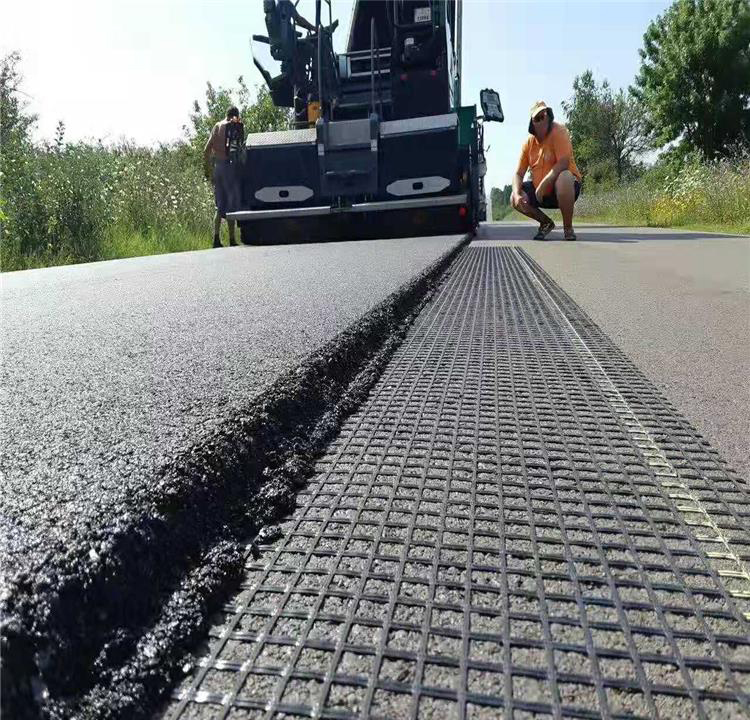

GeoGro Highway ground and foundation

When constructing highways on soft soil foundation, the foundation treatment method of replacing the soft soil layer with sand and gravel is prone to settlement deformation, and the investment is large and the construction period is long.
